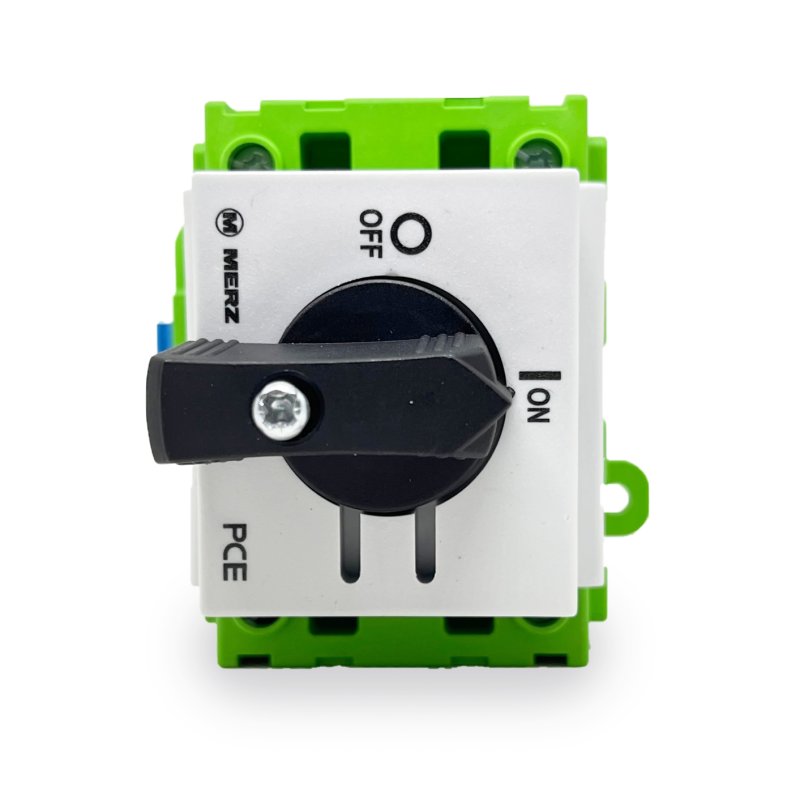

MERZ Isolator 40 A 4p ( 2 strings )

Brand/Make : MERZ-GERMANY

Category : DC ISOLATORS

Rs. 12,500.00

Add to Cart

78 more available

Electrical Data Series MDC10A-442 CE according to IEC/EN 60947-3:

Utilization Category - DC-PV1

Rated operational voltage Ue - [Vdc] 1000

Rated operational current Ie - [Adc] 40

Utilization Category - DC-PV2

Rated operational voltage Ue - [Vdc] 1000

Rated operational current Ie - [Adc] 15

Rated short time withstand current Icw - 600A – 1 sec.

Rated short time making capacity Icm - 600A

Rated Impulse Withstand Voltage Uimp - 8kV

Rated Insulation Voltage Ui - 1000V

DC-PV2: Connecting and disconnecting PV circuits where significant overcurrents may prevail and where current flow can be in both directions; for example, where several strings are connected in parallel and to the same inverter, or, one or more string with a battery.
DC-PV1: Connecting and disconnecting singe PV string(s) where reverse currents and significant overcurrent cannot occur
